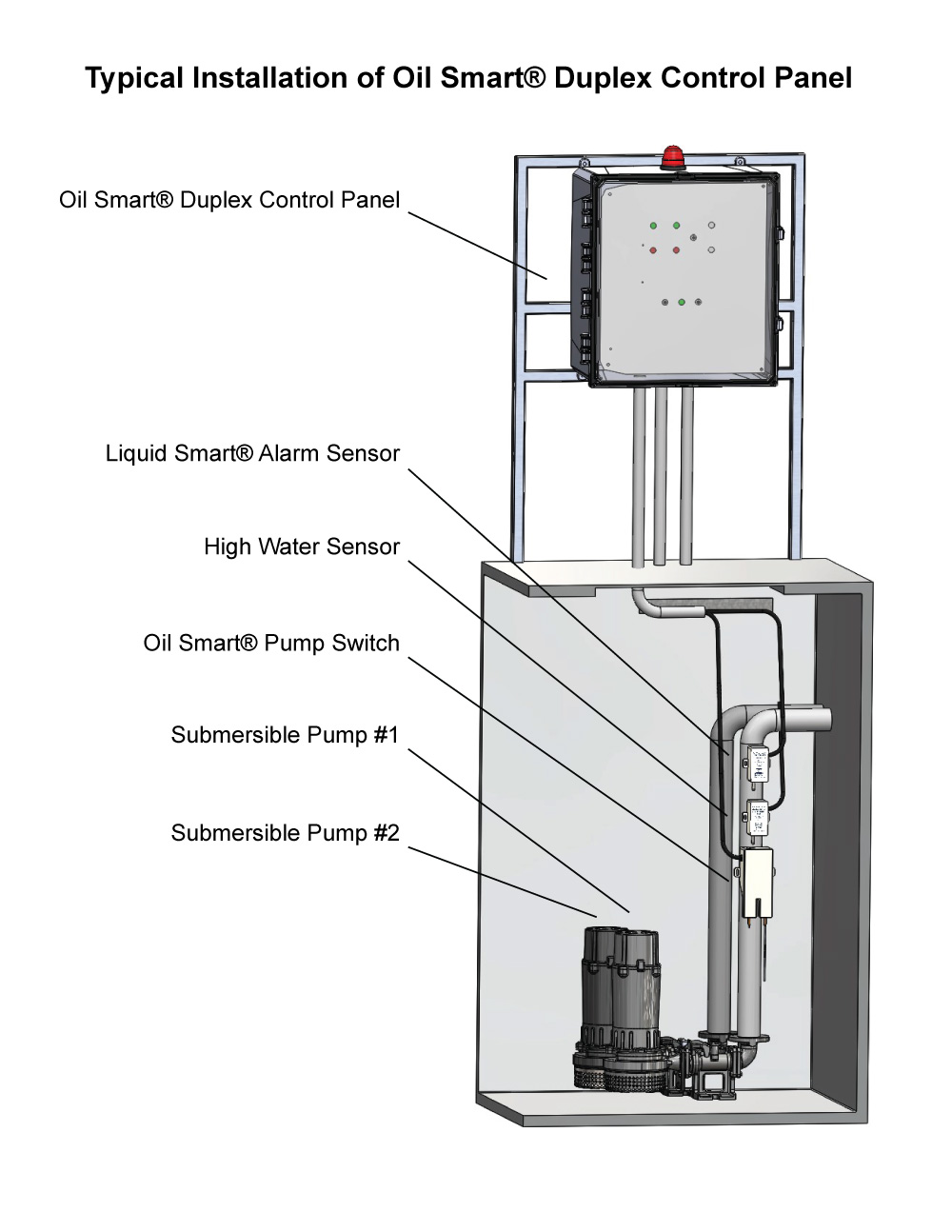

The Oil Smart® single phase duplex control panel will control two 120/208/240V single phase pumps in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil. See Water duplex control panels come standard with a clear front NEMA 4X rated enclosure, Oil Smart® components, IEC rated contactors, and motor protective switches. All panels are UL listed for the United States and Canada, and come with a five-year warranty.

REQUEST A QUOTE

Model Voltage Full Load Amps
OSD1P-1021 120/208/240 0-7.0
OSD1P-1022 120/208/240 7.0-15.0
OSD1P-1023 120/208/240 15.0-22.0
OSD1P-1024 120/208/240 22.0-28.0
OSD1P-1025 120/208/240 28.0-36.0
IS-OSD1P-100X Intrinsically Safe Oil Smart® Duplex Single Phase System
*Choose appropriate suffix for Intrinsically Safe model using the FLA selection chart (i.e. IS-OSD1P-1021 indicates 0-7 FLA).

Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the Oil Smart® single phase models, contact the factory. Each panel includes a motor protector switch that will provide accurate pump circuit breaker protection.


Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE


Features

  • Panel and controls: UL listed for the United States and Canada
  • Indoor/Outdoor NEMA 4X panel enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • Pump control visible indicators: Pump hand-off-auto (H.O.A.) switches, green Pump Run lights, red Pump Fault lights, and green Power On light
  • Alarm visible indicators: Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
  • Alarm horn sounds at 85 decibels at 10 feet
  • Duplex provides: Two-pump alternation and high demand two-pump operation
  • Remote monitoring dry contacts: Oil, Water, High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
  • Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators

Applications

  • Elevator sumps
  • Transformer containment areas
  • Underground utility vaults
  • Any application where there is a need to remove water while containing oil

Custom Options

  • 24 = Pump Exerciser
  • 28 = Power On Dry Contact
  • 3R = Painted Steel Enclosure
  • 6P = Upgraded Enclosure (NEMA 6P Rated); Removes Buzzer and Beacon
  • AF = Alarm Flasher
  • AH = Anti-Condensation Heater
  • C = Additional Cord Length Greater Than 20’*
  • CCD = Cycle Counter w/ LCD Display and Reset
  • ETD = Elapsed Time Meter w/ LCD Display and Reset
  • LAD/LAW = Lightning Secondary Surge Arrestor
  • MD = Main Disconnect
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote Panel Control and System Monitoring
  • SFD = Seal Failure Circuit w/ Indicator Light
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’. Specify after C. Example: (OSD1P-1021-C50). Indicates 50’ cord lengths for all components.
