Single Phase Duplex Demand WD1P-4

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

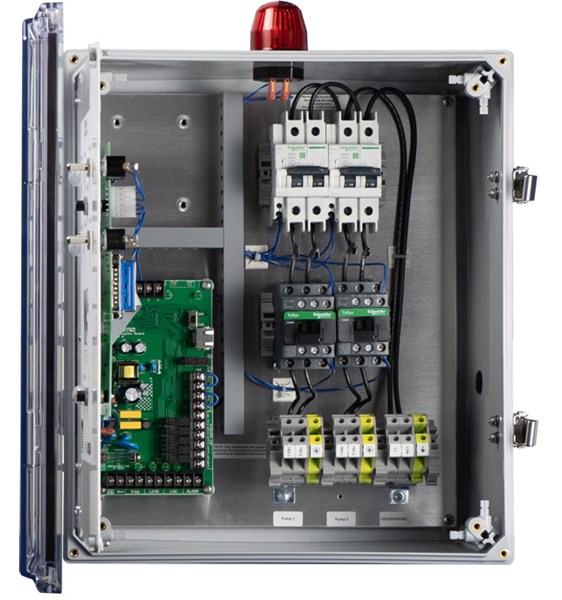

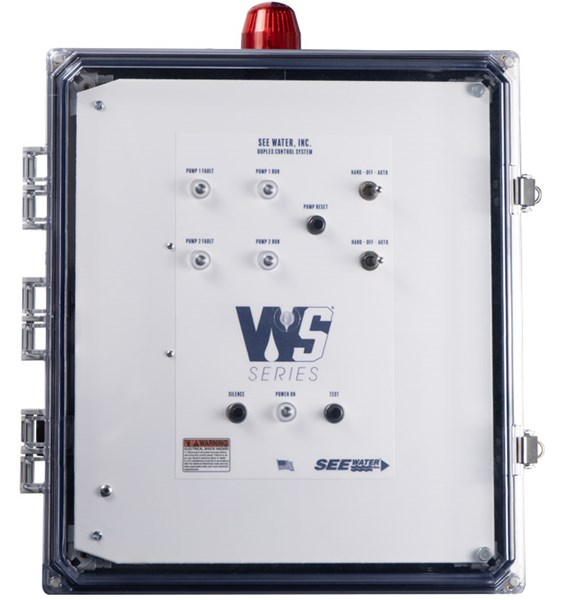

The WS Series® single phase duplex control panel will control two 120/208/240V single phase pumps designed for dewatering, wastewater, and sewage applications. See Water duplex control panels come standard with a clear front NEMA 4X rated enclosure, IEC rated contactors, and motor protective switches. All panels are UL listed for the United States and Canada, and come standard with a five-year warranty.

REQUEST A QUOTE

Model Voltage Full Load Amps
WD1P-4-1021 120/208/240 0-7.0
WD1P-4-1022 120/208/240 7.0-15.0
WD1P-4-1023 120/208/240 15.0-22.0
WD1P-4-1024 120/208/240 22.0-28.0
WD1P-4-1025 120/208/240 28.0-36.0

Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the single phase models, contact the factory. Each panel includes a motor protective switch that will provide accurate pump circuit breaker protection.


Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE


Features

  • UL listed for the United States and Canada (panel and controls)
  • Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • Duplex provides: Two-pump alternation and high demand two-pump operation
  • Pump control visible indicators: Pump #1 and #2 hand-off-auto (H.O.A.) switch, green Pump Run lights, red Pump Fault lights with reset button, and Power On light
  • Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
  • Alarm horn sounds at 85 decibels at 10 feet
  • Remote monitoring dry contacts: High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
  • Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators

Applications

  • Sewage pump chambers
  • Grinder pumps
  • Sump pump basins
  • Lift stations

Custom Options

  • 24 = Pump Exerciser
  • 28 = Power On Dry Contact (Normally Open)
  • 3R = Painted Steel Enclosure
  • AF = Alarm Flasher
  • AH = Anti Condensation Heater
  • C = Additional Cord Length Per Foot Per Component*
  • CCD = Cycle Counter w/ LCD Display and Reset
  • CO = Convenience Outlet (User to supply 120 VAC)
  • ETD = Elapsed Time Meter w/ LCD Display and Reset
  • GR = Generator Receptacle, Includes Transfer Switch
  • ISD = Intrinsically Safe
  • LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
  • LL = Low Level Alarm
  • MD = Main Disconnect; Up to 100 FLA
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote System Monitoring
  • SFD = Seal Failure Circuit w/ Indicator Lights
  • S3 = No Floats Option
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WD1P-4-1021-C50) Indicates 50’ cord lengths for all floats.
