Junction Boxes - Electrical Boxes

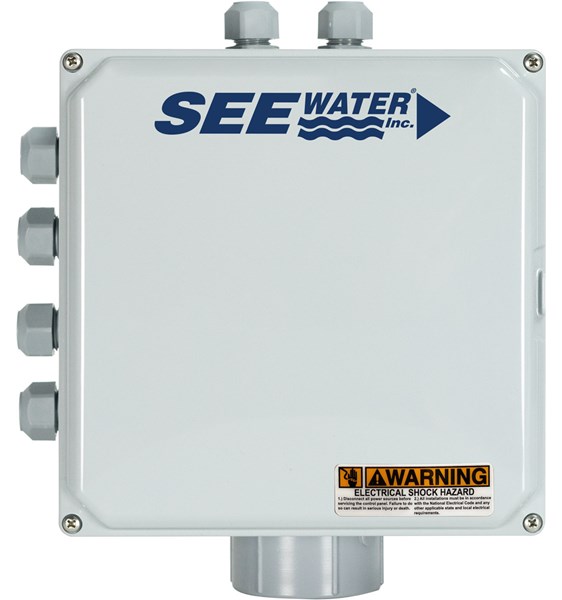

See Water’s junction boxes provide a convenient location for the quick connection of wiring in a pump station, on site, or any other electrical installation. The premium junction boxes are UL listed, NEMA 4X rated and Made in the USA.



Model Size Description
95-10 6”x 6”x 4” polycarbonate junction box
(no connectors or hubs installed)
95-11 8”x 8”x 4” polycarbonate junction box for simplex systems
(1.5” hub, 3 float grips, 1 small pump grip: .2”-.44”)
95-12 8”x 8”x 4” polycarbonate junction box for duplex system
(2” hub, 4 float grips, 2 small pump grips: .2”-.44”)
95-13 8”x 8”x 4” polycarbonate junction box for simplex system
(1.5” hub, 3 float grips, 1 large pump grip: .435”-.705”)
95-14 8”x 8”x 4” polycarbonate junction box for duplex system
(2” hub, 4 float grips, 2 large pump grips: .435” - .705”)
95-15 8”x 8”x 4” polycarbonate junction box
(no connectors or hub installed)

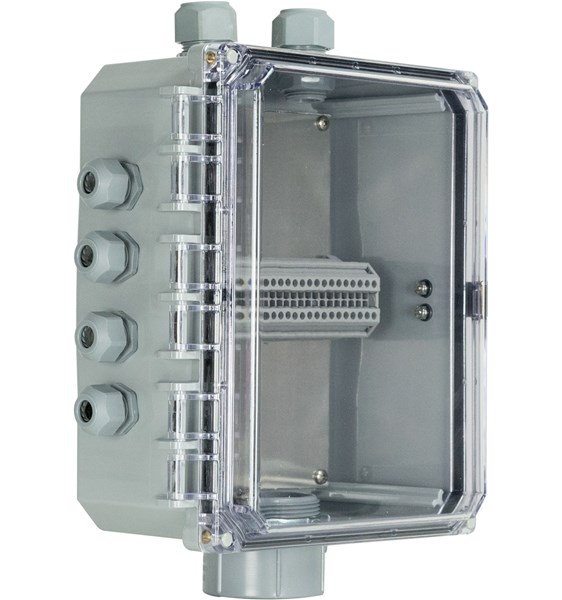

96-04 10”x 8”x 6” clear front polycarbonate junction box
(2” hub, 4 float grips, 2 large pump grips: .435” - .705”)

Optional

To add back plate and terminal block to junction box, place “P” followed by the number of through-feed terminals required (i.e. #95-11P9). Contact the factory for custom junction box options and pricing.

Features

  • Rated NEMA 4X for Outdoor Use
  • Pull point to remove front lid
  • Includes external mounting hardware
  • Protects electrical connections from moisture and other elements

Specifications

  • Enclosure and lid - Indoor/Outdoor NEMA 4X panel enclosure: heavy duty polycarbonate with screw cover.
  • Hub and wire grips: Liquid tight, UL listed and CSA certified
  • Temperature range: -40º to 265ºF
